(1)7-inch IPS full-viewing angle LCD display
(2)Provide API docking documentation and support customized development
(3)Support remote upgrade via WEB and local USB flash drive
(4)Provide a convenient entrance for unregistered visitors to ensure security and improve user experience
(5)Supports 5,000 face databases, with a recognition rate of more than 99.99% and a face recognition speed of less than 1 second
(6)Equipped with smart doorbell function for convenient communication and notification
(7)100,000 facial recognition punch-in records can be stored locally, and up to 1 million records without pictures
(8)Complete employee attendance records and management independently without connecting to external networks or servers

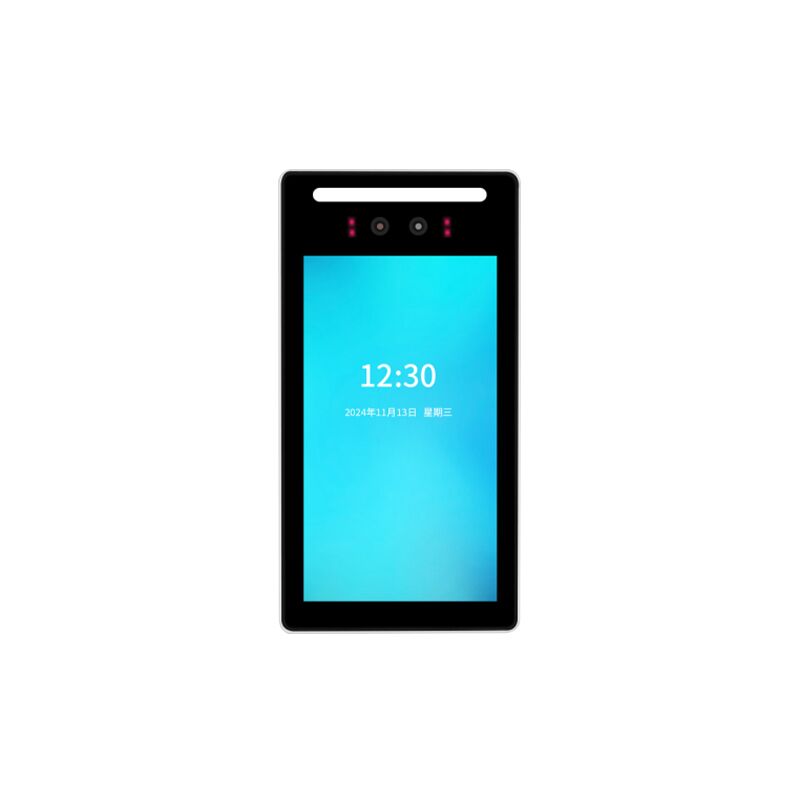

WR701 binocular face recognition terminal adopts wide dynamic high-definition face recognition camera, which can adapt to harsh environments such as strong light and weak light, and has the characteristics of fast recognition speed, high accuracy, and large list library capacity. It can be used with application management systems such as face construction site real-name management system, face access control and attendance management system, visitor management system, etc. It is perfectly suitable for complex application scenarios such as communities, campuses, hospitals, scenic spots, hotels, shopping malls, corporate office buildings, public service places, construction sites, etc. that require temperature monitoring, identity recognition and access control.
| Camera | |
| Resolution | Dual 100w pixels |
| type | Binocular camera |
| aperture | F2.2 |
| Focus distance | 50-150cm |
| White Balance | automatic |
| Fill Light | LED/infrared dual fill light |
| Screen | |
| size | 7.0-inch IPS LCD screen |
| Resolution | 1024×600 |
| touch | support |
| Configuration | |
| CPU | Single-Core CPU |
| NPU | Independent computing power 0.8T |
| operating system | Linux |
| Storage capacity | EMMC 8GB |
| Network Module | Ethernet, wireless (dual-band), 4G network |
| Audio | Audio 2W/8Ω speaker |
| Card reader | IC/ID card reader (optional) |
| System Features | |
| Face database | 5000 faces |
| Card capacity | 5000 |
| 1:N Face Recognition | support |
| Liveness Detection | support |
| Stranger detection | support |
| Identification distance | 50-150cm |
| Recognition speed | < 1 second |
| Recognition rate | 99.99% |
| UI interface configuration | support |
| Remote device upgrade | support |
| API | Equipment management, personnel/photo management, communication records, system settings |
| Deployment | Support public cloud deployment, private deployment, LAN/stand-alone use |
| General parameters | |
| power supply | 12V 2A |
| Operating temperature | -20℃ – 70℃ |
| Storage temperature | -20℃ -70℃ |
| Power consumption | 10W(MAX) |
| Installation | Wall Mounting |
| Protection level | IP54 |
| Device size | 205*105*26mm |
WR701 binocular face recognition terminal adopts wide dynamic high-definition face recognition camera, which can adapt to harsh environments such as strong light and weak light, and has the characteristics of fast recognition speed, high accuracy, and large list library capacity. It can be used with application management systems such as face construction site real-name management system, face access control and attendance management system, visitor management system, etc. It is perfectly suitable for complex application scenarios such as communities, campuses, hospitals, scenic spots, hotels, shopping malls, corporate office buildings, public service places, construction sites, etc. that require temperature monitoring, identity recognition and access control.
| Camera | |
| Resolution | Dual 100w pixels |
| type | Binocular camera |
| aperture | F2.2 |
| Focus distance | 50-150cm |
| White Balance | automatic |
| Fill Light | LED/infrared dual fill light |
| Screen | |
| size | 7.0-inch IPS LCD screen |
| Resolution | 1024×600 |
| touch | support |
| Configuration | |
| CPU | Single-Core CPU |
| NPU | Independent computing power 0.8T |
| operating system | Linux |
| Storage capacity | EMMC 8GB |
| Network Module | Ethernet, wireless (dual-band), 4G network |
| Audio | Audio 2W/8Ω speaker |
| Card reader | IC/ID card reader (optional) |
| System Features | |
| Face database | 5000 faces |
| Card capacity | 5000 |
| 1:N Face Recognition | support |
| Liveness Detection | support |
| Stranger detection | support |
| Identification distance | 50-150cm |
| Recognition speed | < 1 second |
| Recognition rate | 99.99% |
| UI interface configuration | support |
| Remote device upgrade | support |
| API | Equipment management, personnel/photo management, communication records, system settings |
| Deployment | Support public cloud deployment, private deployment, LAN/stand-alone use |
| General parameters | |
| power supply | 12V 2A |
| Operating temperature | -20℃ – 70℃ |
| Storage temperature | -20℃ -70℃ |
| Power consumption | 10W(MAX) |
| Installation | Wall Mounting |
| Protection level | IP54 |
| Device size | 205*105*26mm |
