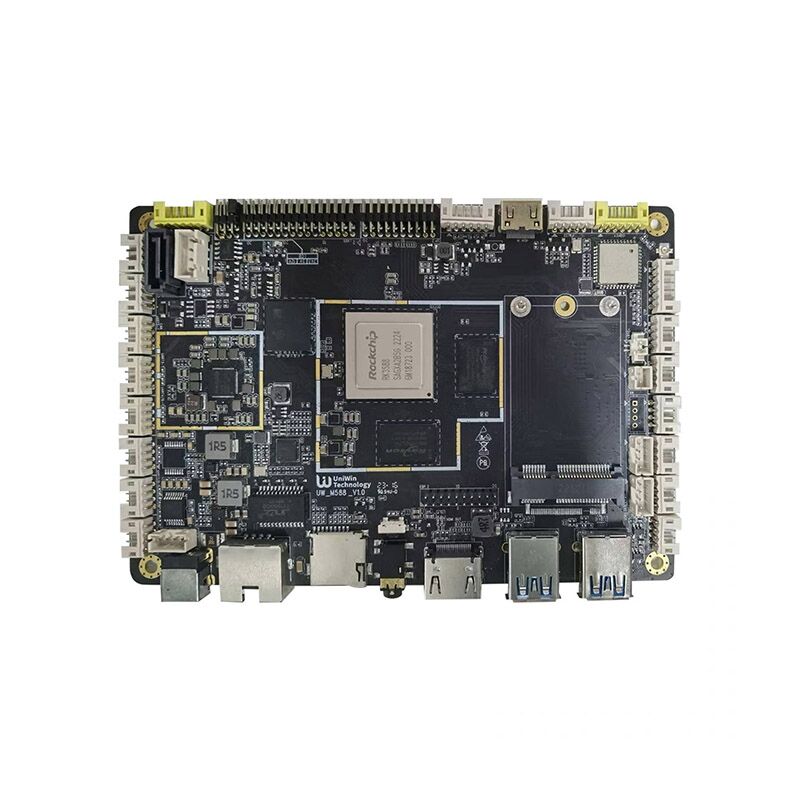

Highlights:
(1) RK3588 (Cortex-A76x4+ Cortex-A55 x4) 6-core, with 6T computing power and main frequency up to 2.4GHZ, meeting performance and AI algorithm requirements;
(2) Integrates LVDS/MIPI/eDP/HDMI/Ethernet/WIFI&BT, supports HDMI-IN input, and can support dual-channel EDP screen output;
(3) Stable Android12 system, providing rich custom APIs to facilitate customer application development;
(4) Rich peripheral interfaces, 9 USB ports, 7 serial ports (configurable as RS232 and 485);
(5) Supports multiple operating systems (Android/Linux/kylin/Tongxin UOS/Hongmeng, etc.);
Highlights:
(1) RK3588 (Cortex-A76x4+ Cortex-A55 x4) 8-core, with 6T computing power and main frequency up to 2.4GHZ, meeting performance and AI algorithm requirements;
(2) Integrates LVDS/MIPI/eDP/HDMI/Ethernet/WIFI&BT, supports HDMI-IN input, and can support dual-channel EDP screen output;
(3) Stable Android12 system, providing rich custom APIs to facilitate customer application development;
(4) Rich peripheral interfaces, 9 USB ports, 7 serial ports (configurable as RS232 and 485);
(5) Supports multiple operating systems (Android/Linux/kylin/Tongxin UOS/Hongmeng, etc.);

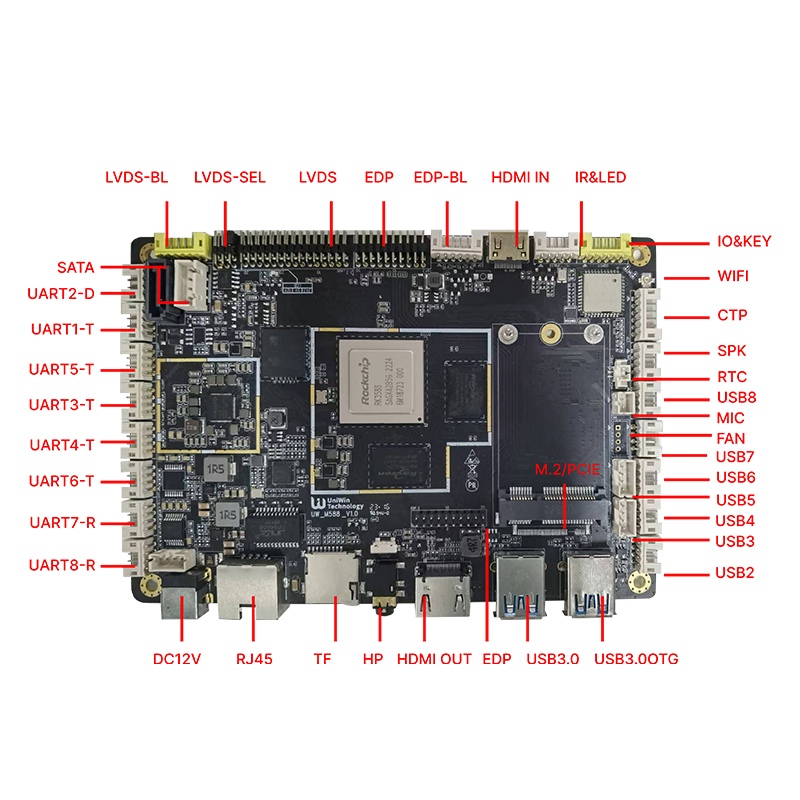

| Operating system | Google Android 12 system |
| CPU | Quad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz |
| GPU | Mali-G610 MP4 |
| Memory (DDR) | LPDDR4 4GB/8GB/16GB optional (label 4GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB/64GB/128GB/256GB optional (label 32GB) |
| External memory card | Support up to 128GB |
|
Display Interface |
1 LVDS interface (supports 6 or 8-bit single or dual LVDS), supports maximum resolution of 1920×1200 |
| 2-way EDP interface, supporting maximum resolution 2560×1600 | |
| 1 HDMI OUT interface, supporting maximum resolution 7680*4320 | |
| 1 MIPI interface, supporting maximum resolution 1920×1200 | |
| 1 HDMI IN interface, supporting maximum 2K resolution | |
| Onboard backlight | Support 3.3V/5V/12V optional |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | Support infrared, resistive and capacitive touch screens |
|
Audio |
Support headphone output, built-in amplifier, support 2-way 8Ω10W speakers |
| Support MIC, 1 microphone interface, support headphone microphone | |
| 3G/4G | Support 4G/5G M.2 interface and PCIE interface module |
| USB | 9 USB HOST, 7 4PIN sockets, 2 standard USB3.0 |
| Serial Port | 5-channel TTL, 2-channel RS232, 2-channel TTL can also be configured as 2 RS232, or 1-channel RS485) |
| IO | Support external power button, reset button or external button board or light board, with multiple available interrupt IO ports |
|
Network |
RJ45 standard interface, Gigabit Ethernet interface |
| Support 4G/5G M.2 interface and PCIE interface module | |
| Equipped with Bluetooth + WIFI module, supports Wi-Fi 802.11a/b/g/n protocol | |
| Support Bluetooth 4.2 protocol, support Bluetooth 4.2 protocol | |
| Power supply | DC 12V3A (4PIN2.0 socket 12V power supply) |
| Size | 148mm x102mmx11mm |
Highlights:
(1) RK3588 (Cortex-A76x4+ Cortex-A55 x4) 8-core, with 6T computing power and main frequency up to 2.4GHZ, meeting performance and AI algorithm requirements;
(2) Integrates LVDS/MIPI/eDP/HDMI/Ethernet/WIFI&BT, supports HDMI-IN input, and can support dual-channel EDP screen output;
(3) Stable Android12 system, providing rich custom APIs to facilitate customer application development;
(4) Rich peripheral interfaces, 9 USB ports, 7 serial ports (configurable as RS232 and 485);
(5) Supports multiple operating systems (Android/Linux/kylin/Tongxin UOS/Hongmeng, etc.);
| Operating system | Google Android 12 system |
| CPU | Quad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz |
| GPU | Mali-G610 MP4 |
| Memory (DDR) | LPDDR4 4GB/8GB/16GB optional (label 4GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB/64GB/128GB/256GB optional (label 32GB) |
| External memory card | Support up to 128GB |
|
Display Interface |
1 LVDS interface (supports 6 or 8-bit single or dual LVDS), supports maximum resolution of 1920×1200 |
| 2-way EDP interface, supporting maximum resolution 2560×1600 | |
| 1 HDMI OUT interface, supporting maximum resolution 7680*4320 | |
| 1 MIPI interface, supporting maximum resolution 1920×1200 | |
| 1 HDMI IN interface, supporting maximum 2K resolution | |
| Onboard backlight | Support 3.3V/5V/12V optional |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | Support infrared, resistive and capacitive touch screens |
|
Audio |
Support headphone output, built-in amplifier, support 2-way 8Ω10W speakers |
| Support MIC, 1 microphone interface, support headphone microphone | |
| 3G/4G | Support 4G/5G M.2 interface and PCIE interface module |
| USB | 9 USB HOST, 7 4PIN sockets, 2 standard USB3.0 |
| Serial Port | 5-channel TTL, 2-channel RS232, 2-channel TTL can also be configured as 2 RS232, or 1-channel RS485) |
| IO | Support external power button, reset button or external button board or light board, with multiple available interrupt IO ports |
|
Network |
RJ45 standard interface, Gigabit Ethernet interface |
| Support 4G/5G M.2 interface and PCIE interface module | |
| Equipped with Bluetooth + WIFI module, supports Wi-Fi 802.11a/b/g/n protocol | |
| Support Bluetooth 4.2 protocol, support Bluetooth 4.2 protocol | |
| Power supply | DC 12V3A (4PIN2.0 socket 12V power supply) |
| Size | 148mm x102mmx11mm |
