Highlights:
(1) 8-core 2GHz main control, supporting industrial wide temperature standards;
(2) Rich display interfaces, supporting dual eDP/dual MIPI/dual LVDS and HDMI output;
(3) Stable Android system, providing rich custom APIs to facilitate customer application development;
(4) Rich peripheral interfaces, 11 USB ports, 6 serial ports (configurable as RS232 and RS485);
(5) Support OpenHarmony, Ubuntu/Debian, Kirin/Tongxin and other systems;
Highlights:
(1) 8-core 2GHz main control, supporting industrial wide temperature standards;
(2) Rich display interfaces, supporting dual eDP/dual MIPI/dual LVDS and HDMI output;
(3) Stable Android system, providing rich custom APIs to facilitate customer application development;
(4) Rich peripheral interfaces, 11 USB ports, 6 serial ports (configurable as RS232 and 485);
(5) Support OpenHarmony, Ubuntu/Debian, Kirin/Tongxin and other systems;

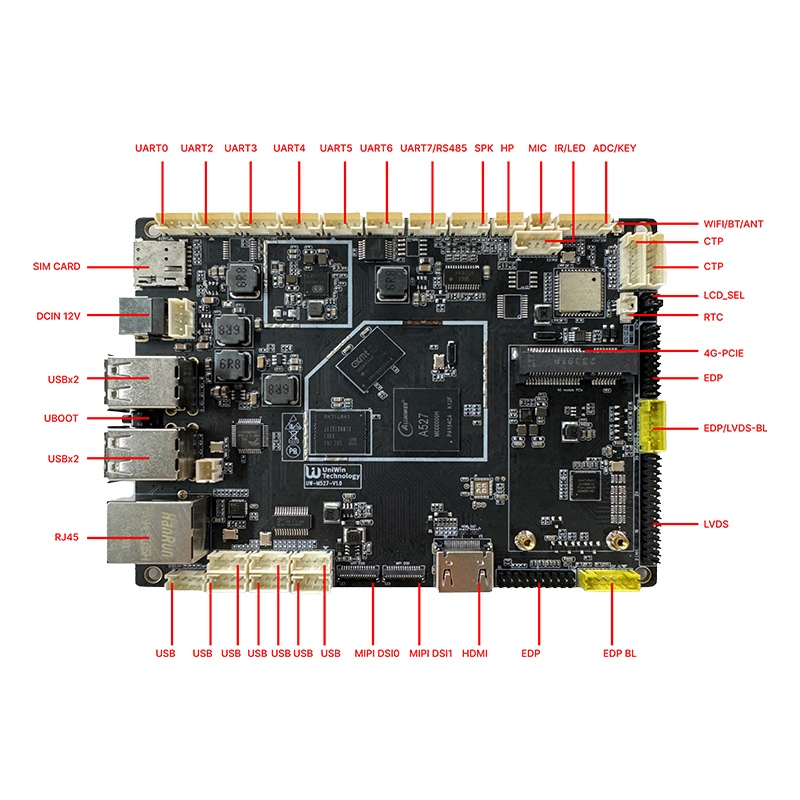

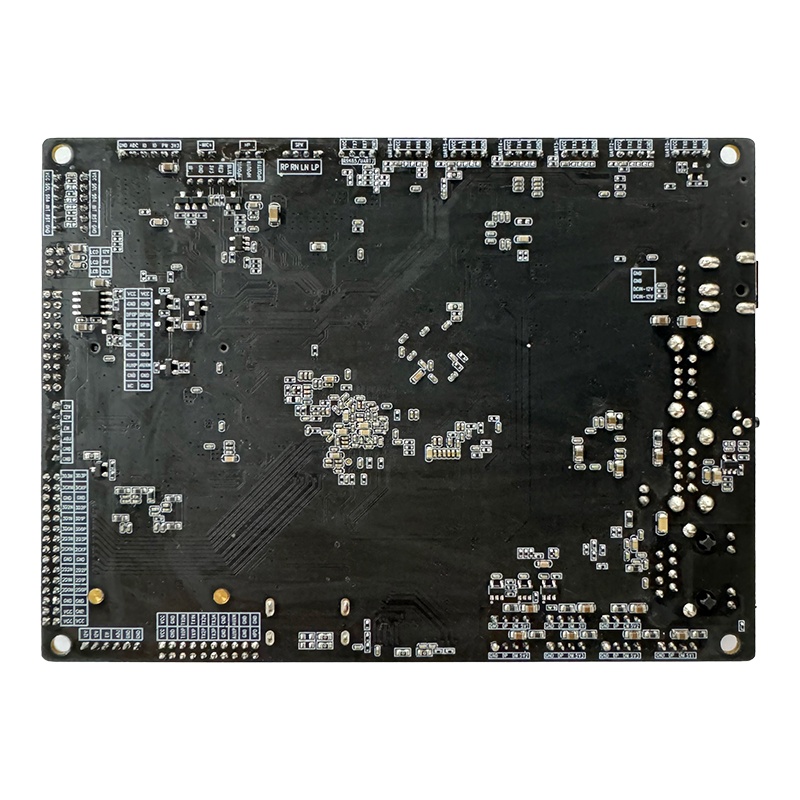

| Operating system | Android13 |

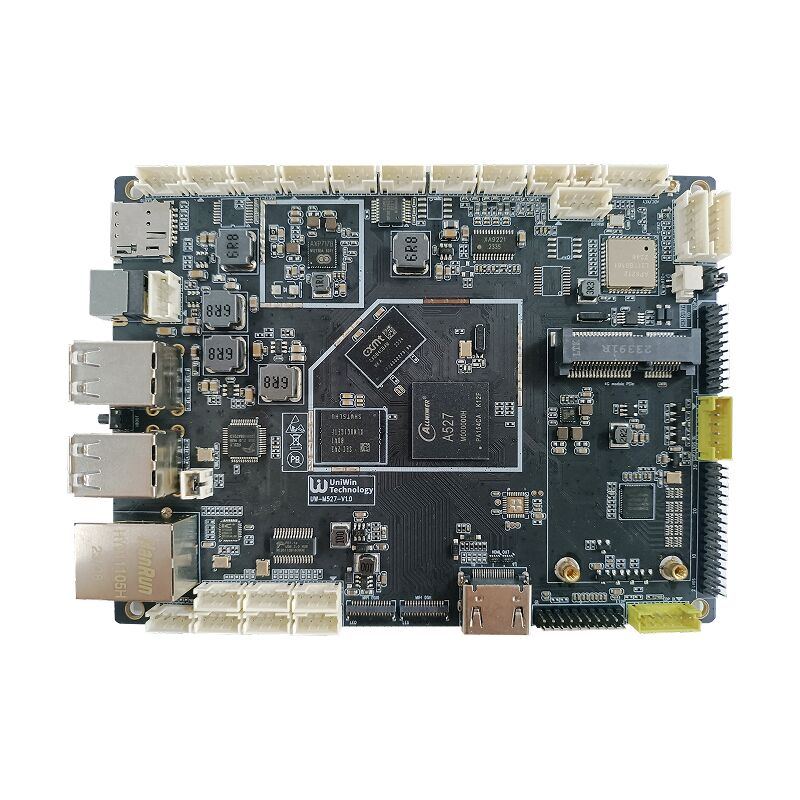

| CPU | Allwinner A527, octa-core ARM Cortex A55 2GHz |
| GPU | ARM G57 MC01 GPU |
| Memory (DDR) | LPDDR4/4X 2GB/4GB optional (label 2GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB etc. optional (label 8GB) |
| External memory card | Not supported |
|
Display Interface |
1 LVDS interface (single channel, 6 or 8 bit dual channel), supporting maximum resolution 1920×1080 |
| 2 EDP interfaces, one 2.5K@60fps, one 1080p@60fps | |
| 2 MIPI interfaces, supporting a maximum resolution of 1920×1080 | |
| 1 HDMI supports 4K@60fps | |
| Onboard backlight | Support 3.3V/5V/12V optional |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | Support infrared, resistive and capacitive touch screens |
|
Audio |
Built-in amplifier, supports 8Ω 10W*2 speakers |
| Support MIC, 1 microphone interface | |
| 3G/4G | Support onboard PCIE interface 4G/5G mobile communication module |
| USB | 11 USB ports, 7 sockets, 4 standard ports |
| Serial Port | 6 serial ports, 4 of which can be configured as TTL or RS232, and 1 can be configured as RS485 |
| IO | Support external power button, reset button or external button board or light board, with multiple available interrupt IO ports |
|
Network |
RJ45 standard interface, 100M Ethernet interface |
| Support onboard PCIE interface 4G/5G mobile communication module | |
| Equipped with Bluetooth + WIFI module, supports Wi-Fi 802.11b/g/n protocol, supports Bluetooth 4.2 protocol | |
| Support Bluetooth 4.2 protocol (compatible with Bluetooth 5.0 protocol) | |
| Power supply | DC12V3A (4PIN2.0 socket 12V power supply) |
| Size | 120mm x75mmx10mm |
Highlights:
(1) 8-core 2GHz main control, supporting industrial wide temperature standards;
(2) Rich display interfaces, supporting dual eDP/dual MIPI/dual LVDS and HDMI output;
(3) Stable Android system, providing rich custom APIs to facilitate customer application development;
(4) Rich peripheral interfaces, 11 USB ports, 6 serial ports (configurable as RS232 and 485);
(5) Support OpenHarmony, Ubuntu/Debian, Kirin/Tongxin and other systems;
| Operating system | Android13 |
| CPU | Allwinner A527, octa-core ARM Cortex A55 2GHz |
| GPU | ARM G57 MC01 GPU |
| Memory (DDR) | LPDDR4/4X 2GB/4GB optional (label 2GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB etc. optional (label 8GB) |
| External memory card | Not supported |
|
Display Interface |
1 LVDS interface (single channel, 6 or 8 bit dual channel), supporting maximum resolution 1920×1080 |
| 2 EDP interfaces, one 2.5K@60fps, one 1080p@60fps | |
| 2 MIPI interfaces, supporting a maximum resolution of 1920×1080 | |
| 1 HDMI supports 4K@60fps | |
| Onboard backlight | Support 3.3V/5V/12V optional |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | Support infrared, resistive and capacitive touch screens |
|
Audio |
Built-in amplifier, supports 8Ω 10W*2 speakers |
| Support MIC, 1 microphone interface | |
| 3G/4G | Support onboard PCIE interface 4G/5G mobile communication module |
| USB | 11 USB ports, 7 sockets, 4 standard ports |
| Serial Port | 6 serial ports, 4 of which can be configured as TTL or RS232, and 1 can be configured as RS485 |
| IO | Support external power button, reset button or external button board or light board, with multiple available interrupt IO ports |
|
Network |
RJ45 standard interface, 100M Ethernet interface |
| Support onboard PCIE interface 4G/5G mobile communication module | |
| Equipped with Bluetooth + WIFI module, supports Wi-Fi 802.11b/g/n protocol, supports Bluetooth 4.2 protocol | |
| Support Bluetooth 4.2 protocol (compatible with Bluetooth 5.0 protocol) | |
| Power supply | DC12V3A (4PIN2.0 socket 12V power supply) |
| Size | 120mm x75mmx10mm |
