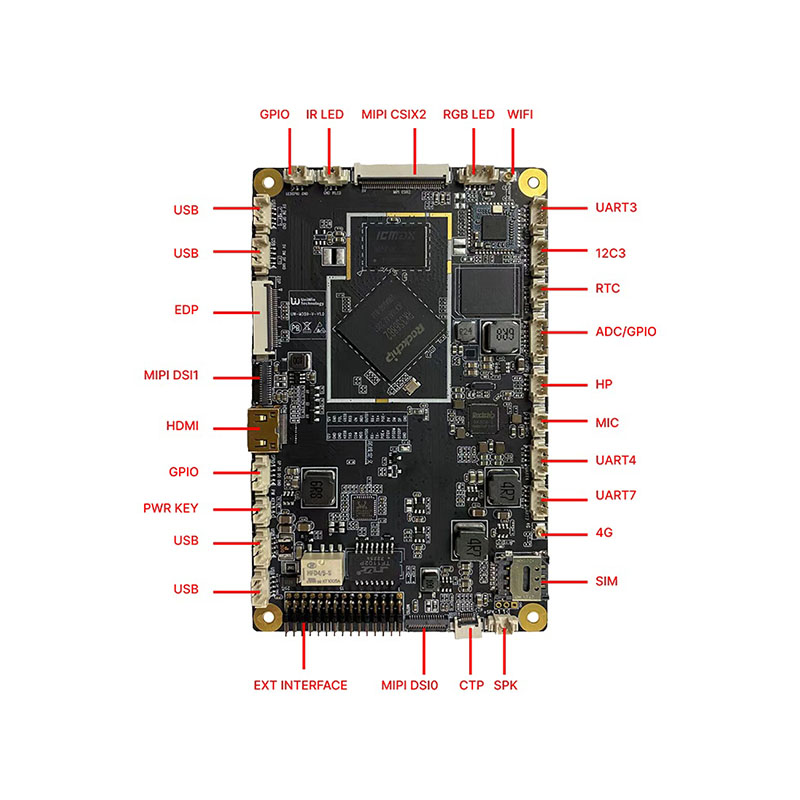

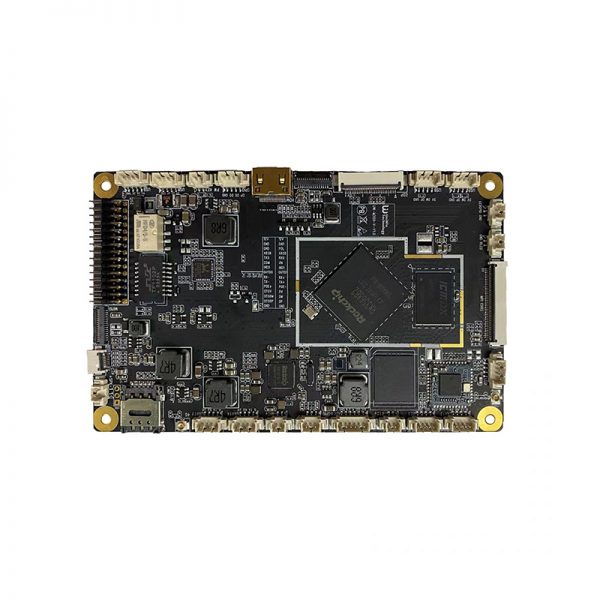

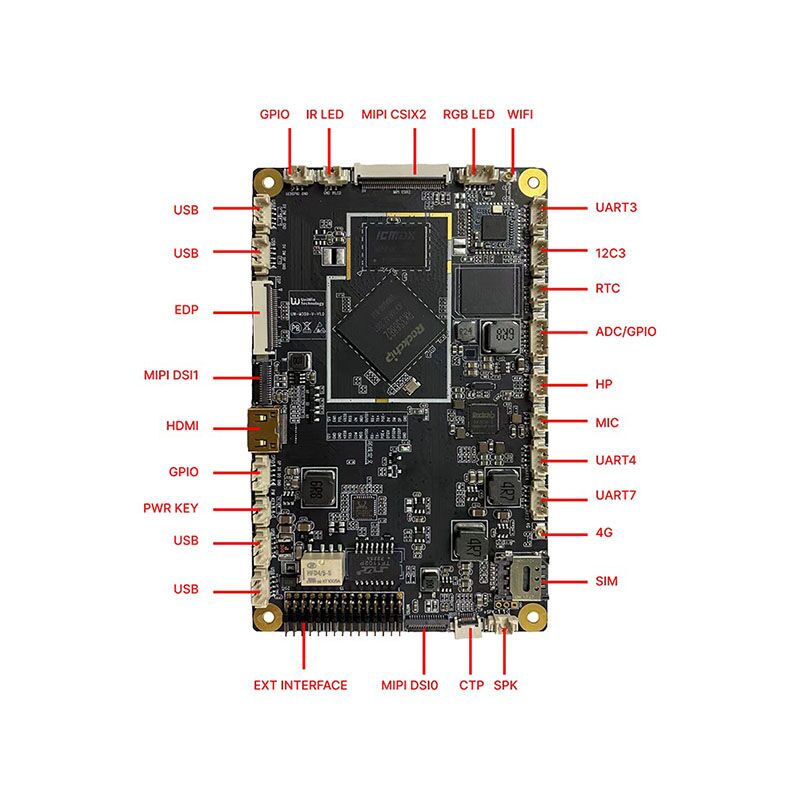

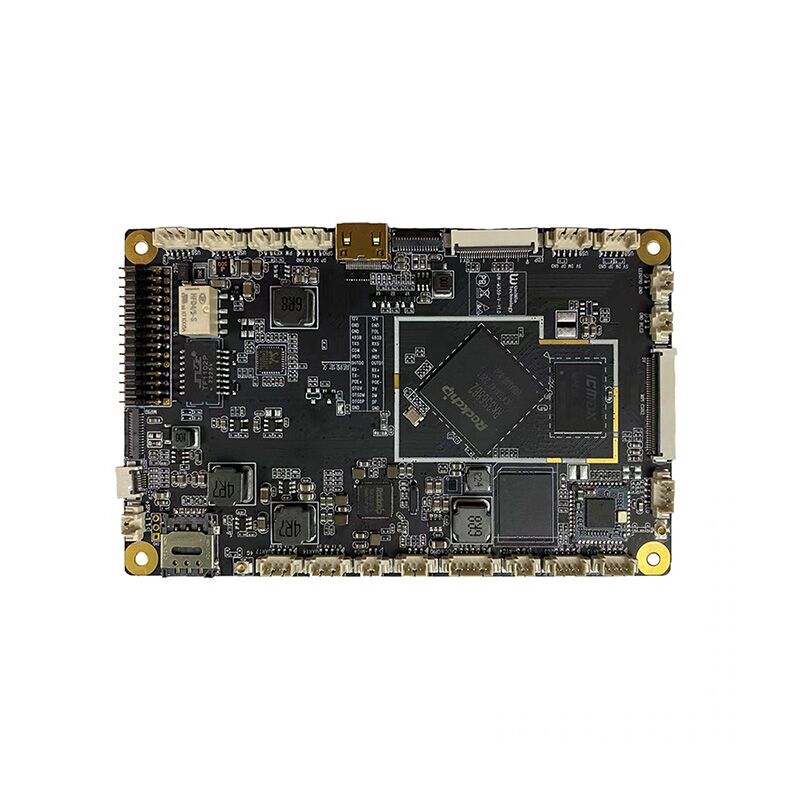

Highlights:
(1) M358 uses Rockchip RK3568 (Cortex-A55x4) quad-core processor with a main frequency of up to 2.0GHz and supports 0.8T computing power; (2) Supports Android11 system and provides rich custom APIs to facilitate customer application development;
(3) Rich peripheral interfaces, 5 serial ports (configurable as 1 485, 2 RS232, 1 TTL), 6 USB ports, and supports multiple GPIOs;
(4) Supports relay and Wiegand input and output;

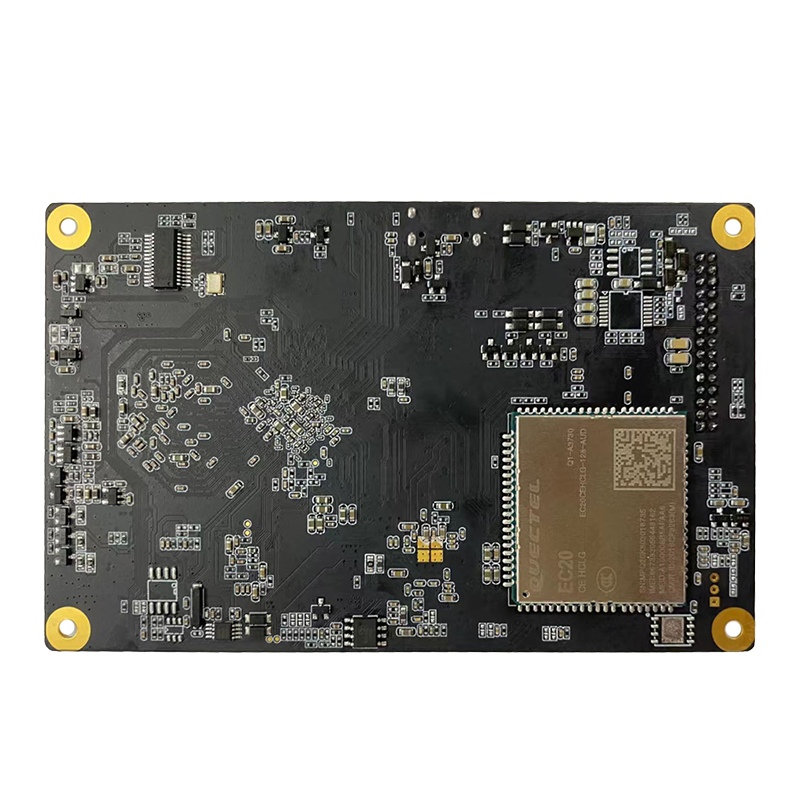

(5) Supports built-in CAT1 4G module;
(6) Supports MIPI binocular (infrared + visible)/USB binocular (infrared + visible) cameras;
(7) Supports 12vPOE power supply;
(8) Supports Android/LINUX system customization (Linux can support Debian11, Ubuntu18.04 or Buildroot QT);
Highlights:
(1) M358 uses Rockchip RK3568 (Cortex-A55x4) quad-core processor with a main frequency of up to 2.0GHz and supports 0.8T computing power; (2) Supports Android11 system and provides rich custom APIs to facilitate customer application development;
(3) Rich peripheral interfaces, 5 serial ports (configurable as 1 485, 2 RS232, 1 TTL), 6 USB ports, and supports multiple GPIOs;
(4) Supports relay and Wiegand input and output;
(5) Supports built-in CAT1 4G module;
(6) Supports MIPI binocular (infrared + visible)/USB binocular (infrared + visible) cameras;
(7) Supports 12vPOE power supply;
(8) Supports Android/LINUX system customization (Linux can support Debian11, Ubuntu18.04 or Buildroot QT);
| Operating system | Android 11 |
| CPU | Quad-core 64-bit Cortex-h55, with a maximum frequency of 2.0GHz and supports 0.8T computing power |
| GPU | Mali-G52 |
| Memory (DDR) | LPDDR4 2GB/4GB/8GB (label 2GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB/64GB/128GB optional (label 8GB) |
| External memory card | Maximum support 256GB |
|
Display Interface |
2 MIPI interfaces, support maximum resolution 1920×1200@60Hz |
| 1 EDP interface, supporting maximum resolution 2560×1600@60Hz | |
| 1 HDMI port, supports maximum resolution 4096×2160@60Hz | |
| Onboard backlight | / |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | Support infrared, resistive and capacitive touch screens |
|
Audio |
Support headphone output, built-in amplifier, support 4Ω3W speakers |
| Support MIC, 1 microphone interface, support headphone microphone | |
| 3G/4G | Support 4g, module |
| USB | 6 USB HOSTs, 4 onboard, 2 on the tail line |
| Serial Port | 5-channel TTL, 2-channel RS232, 2-channel TTL can also be configured as 2 RS232, or 1-channel RS485) |
| IO | Support external power button, reset button or external button board or light board, with multiple available interrupt IO ports |
|
Network |
100M Ethernet interface, support POE power supply |
| Support 4G ON BOARD, ESIM card, SIM card holder or external card holder | |
| Support WIFI+Bluetooth module, support Wi-Fi 802.11b/g/n protocol (compatible with WiFi6 or 5G WiFi) | |
| Support Bluetooth 4.2 protocol (compatible with Bluetooth 5.0 protocol) | |
| Power supply | DC 12V3A |
| Size | 120mm x75mmx10mm |
