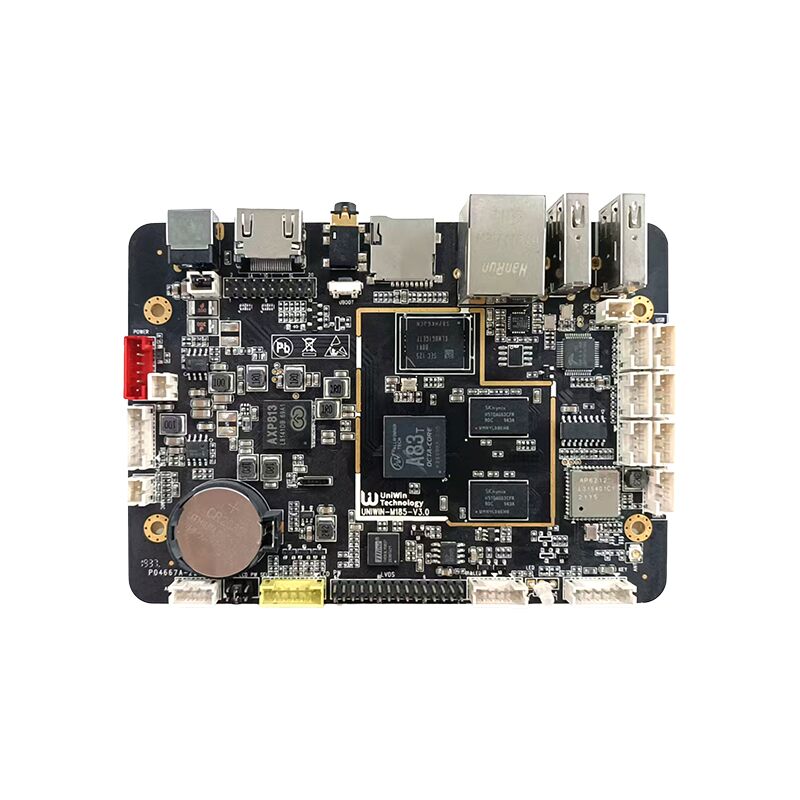

Highlights:
(1) Octa-core ARM Cortex A7, with a maximum frequency of 2GHz
(2) Supports LVDS and HDMI high-definition output
(3) 3 serial ports (2 TTL compatible 232 serial ports), 6 USB ports
(4) Provides a rich set of custom APIs to facilitate customer application development;
Highlights:
(1) Octa-core ARM Cortex A7, with a maximum frequency of 2GHz
(2) Supports LVDS and HDMI high-definition output
(3) 3 serial ports (2 TTL compatible 232 serial ports), 6 USB ports
(4) Provides a rich set of custom APIs to facilitate customer application development;

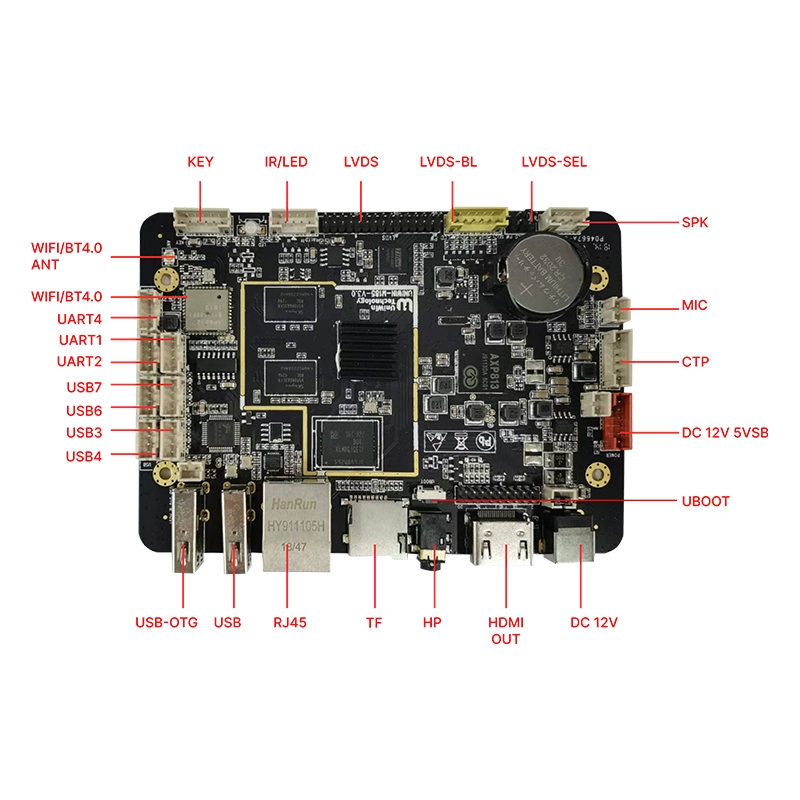

| Operating system | Android 4.4/6.0/7.1 |
| CPU | Allwinner A83T, octa-core ARM Cortex A7 1.8GHz |
| GPU | PowerVR SGX544 |
| Memory (DDR) | DDR3 1GB/2GB (label 2GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB optional (label 8GB) |
| External memory card | Support up to 128GB |
|
Display Interface |
1*LVDS interface (single channel, 6-bit dual channel, 8-bit dual channel). Supports maximum resolution 1920×1080, supports 7″-100″ display |
| 1*Support HDMI1.4 output 1080P | |
| Onboard backlight | Support 3.3V/5V/12V optional |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*12C (supports multi-point resistive touch, multi-point capacitive touch)
Supports USB infrared, resistive, capacitive touch screen |
|
Audio |
Support MIC, 1 microphone interface, support headphone microphone |
| Support headphone output, built-in amplifier, support 8Ω 2W*2 speakers | |
| 4G/5G | Support external USB interface 3G/4G module |
| USB | 6*USB HOST (two onboard, 4 external) |
| Serial port | 3*TTL (1 channel is the default Debug port and is compatible with RS232 interface) |
| IO | Support external power on/off button, reset button or external button board or light board, with multiple available interrupt IOports |
|
Network |
RJ45 standard interface, 100M Ethernet interface, support Ethernet |
| Equipped with Bluetooth + wifi module, supports Wi-Fi 802.11b/g/n protocol | |
| Support Bluetooth 4.2 protocol, can support Bluetooth 4.2 protocol (OPTION) | |
| Power supply | DC12V3A |
| Size | 123.9mm x87.8mmx 16mm |
