(1) Quad-core ARM Cortex A7, with a maximum frequency of 1.5GHz, a commercial quad-core dedicated motherboard;
(2) It can support LVDS dot screen, MIPI dot screen, CVBS input and output, VGA output, YPbPr output and HDMI high-definition output;
(3) 4 serial ports, 6 USB ports, TF card and other expansion interfaces are abundant (4) Support Android and Linux systems optional;
Highlights:
(1) Quad-core ARM Cortex A7, with a maximum frequency of 1.5GHz, a quad-core motherboard dedicated to commercial display;
(2) Supports LVDS dot screen, MIPI dot screen, CVBS input and output, VGA output, YPbPr output and HDMI high-definition output; (3) Rich expansion interfaces such as 4 serial ports, 6 USB ports, TF card, etc. (4) Supports Android and Linux systems; Application areas: new retail, Android all-in-one machines, medical equipment, etc.

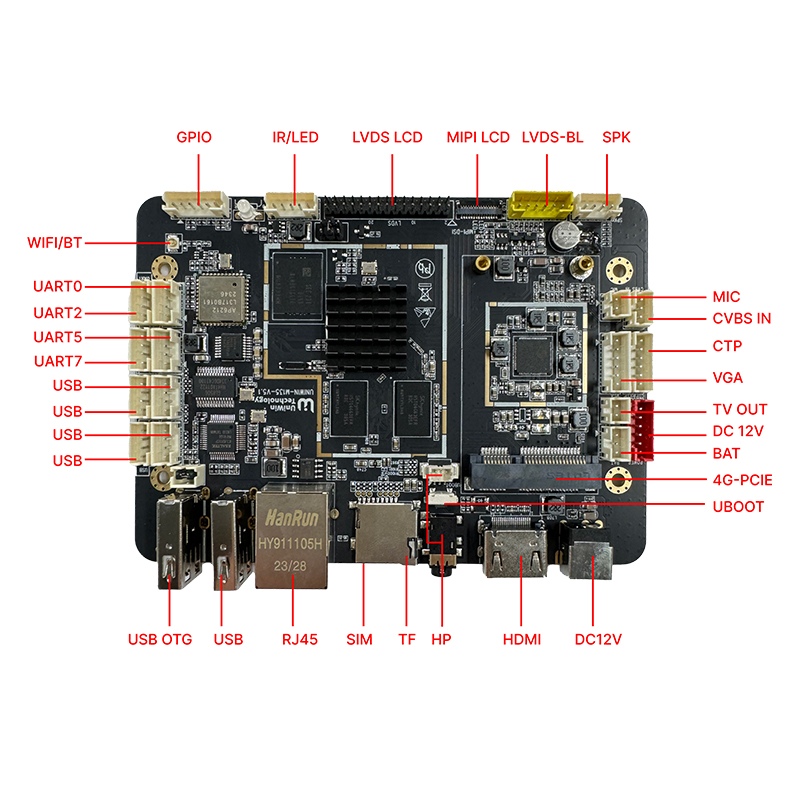

| Operating System | Android 4.4/6.0/7.1 |

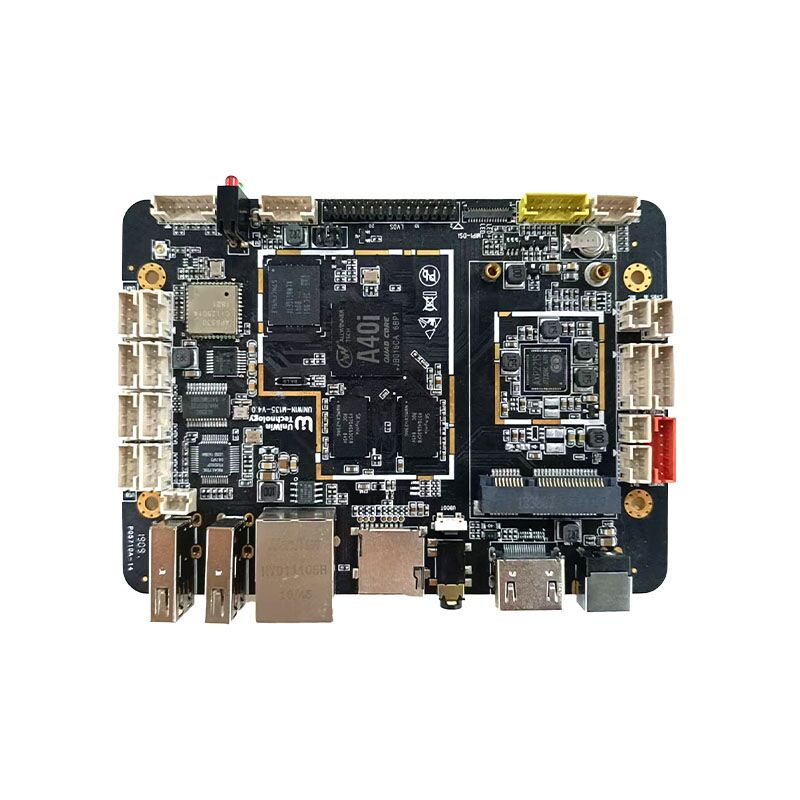

| CPU | Allwinner A40i, quad-core ARM Cortex A7 1.5 GHz |
| GPU | Mali400 MP2 |
| Memory (DDR) | DDR3 1GB/2GB |
| Built-in storage (emmc) | EMMC8GB/16G/32G optional (label 8GB) |
| External memory card | Support up to 128GB |
| Display Interface | 1*LVDS interface (single channel, 6-bit dual channel, 8-bit dual channel). Supports maximum resolution 1920×1080, supports 7″-100″ display |
| 1*MIPI interface, supports maximum resolution 1920×1080, supports 3.5″-13″ display | |
| 1*Support CVBS output, 2*Support CVBS input | |
| 1*Support Ypbpr and VGA output | |
| 1*Support HDMI 1.4 output 1080P | |
| Onboard backlight | Support 3.3V/5V/12V optional |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*12C (supports multi-point resistive touch, multi-point capacitive touch)
Supports USB infrared, resistive, capacitive touch screen |
| Audio | Support MIC, 1 microphone interface, support headphone microphone |
| Support headphone output, built-in amplifier, support 2W*2 8 ohm speakers | |
| 4G/5G | Support 4g, onboard 4g-PCIE seat |
| USB | 6*USB HOST (two onboard, 4 external) |
| Serial Port | 3*TTL (1 is the default Debug port) 1*RS232 (can be configured as 4*TTL or 2*TTL 2*RS232) |
| IO | Support external power on/off button, reset button or external button board or light board, with multiple available interrupt I0 ports |
| Network | RJ45 standard interface, 100M Ethernet interface, support Ethernet |
| Equipped with Bluetooth + wifi module, supports Wi-Fi 802.11b/g/n protocol | |
| Support Bluetooth 4.2 protocol, can support Bluetooth 4.2 protocol (OPTION) | |
| Power Supply | DC12V3A |
| Size | 123.9mm x87.8mmx 16mm |
 |
 |
 |
|
New Retail |
Android all-in-one machine |
Medical Devices |
Highlights:
(1) Quad-core ARM Cortex A7, with a maximum frequency of 1.5GHz, a quad-core motherboard dedicated to commercial display;
(2) Supports LVDS dot screen, MIPI dot screen, CVBS input and output, VGA output, YPbPr output and HDMI high-definition output; (3) Rich expansion interfaces such as 4 serial ports, 6 USB ports, TF card, etc. (4) Supports Android and Linux systems; Application areas: new retail, Android all-in-one machines, medical equipment, etc.
| Operating System | Android 4.4/6.0/7.1 |
| CPU | Allwinner A40i, quad-core ARM Cortex A7 1.5 GHz |
| GPU | Mali400 MP2 |
| Memory (DDR) | DDR3 1GB/2GB |
| Built-in storage (emmc) | EMMC8GB/16G/32G optional (label 8GB) |
| External memory card | Support up to 128GB |
| Display Interface | 1*LVDS interface (single channel, 6-bit dual channel, 8-bit dual channel). Supports maximum resolution 1920×1080, supports 7″-100″ display |
| 1*MIPI interface, supports maximum resolution 1920×1080, supports 3.5″-13″ display | |
| 1*Support CVBS output, 2*Support CVBS input | |
| 1*Support Ypbpr and VGA output | |
| 1*Support HDMI 1.4 output 1080P | |
| Onboard backlight | Support 3.3V/5V/12V optional |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*12C (supports multi-point resistive touch, multi-point capacitive touch)
Supports USB infrared, resistive, capacitive touch screen |
| Audio | Support MIC, 1 microphone interface, support headphone microphone |
| Support headphone output, built-in amplifier, support 2W*2 8 ohm speakers | |
| 4G/5G | Support 4g, onboard 4g-PCIE seat |
| USB | 6*USB HOST (two onboard, 4 external) |
| Serial Port | 3*TTL (1 is the default Debug port) 1*RS232 (can be configured as 4*TTL or 2*TTL 2*RS232) |
| IO | Support external power on/off button, reset button or external button board or light board, with multiple available interrupt I0 ports |
| Network | RJ45 standard interface, 100M Ethernet interface, support Ethernet |
| Equipped with Bluetooth + wifi module, supports Wi-Fi 802.11b/g/n protocol | |
| Support Bluetooth 4.2 protocol, can support Bluetooth 4.2 protocol (OPTION) | |
| Power Supply | DC12V3A |
| Size | 123.9mm x87.8mmx 16mm |
|
|
|
|
New Retail |
Android all-in-one machine |
Medical Devices |
