Highlights:
(1) Highly cost-effective, dynamic face recognition, supports up to 5,000 face databases
(2) Multiple ways to open the door (card/face/password/fingerprint/palmprint, etc.)
(3) Support relay and Wiegand input and output, multiple sets of standard docking protocols (http/websocket/mqtt)
(4) Support mini-program remote door opening
(5) Support customized development of differentiated products (hardware/system/application/management platform and mini-program)
(6) Support SIP and private protocol video intercom;
Highlights:
(1) Highly cost-effective, dynamic face recognition, supports up to 5,000 face databases
(2) Multiple ways to open the door (card/face/password/fingerprint/palmprint, etc.)
(3) Support relay and Wiegand input and output, multiple sets of standard docking protocols (http/websocket/mqtt)
(4) Support mini-program remote door opening
(5) Support customized development of differentiated products (hardware/system/application/management platform and mini-program)
(6) Support SIP and private protocol video intercom;

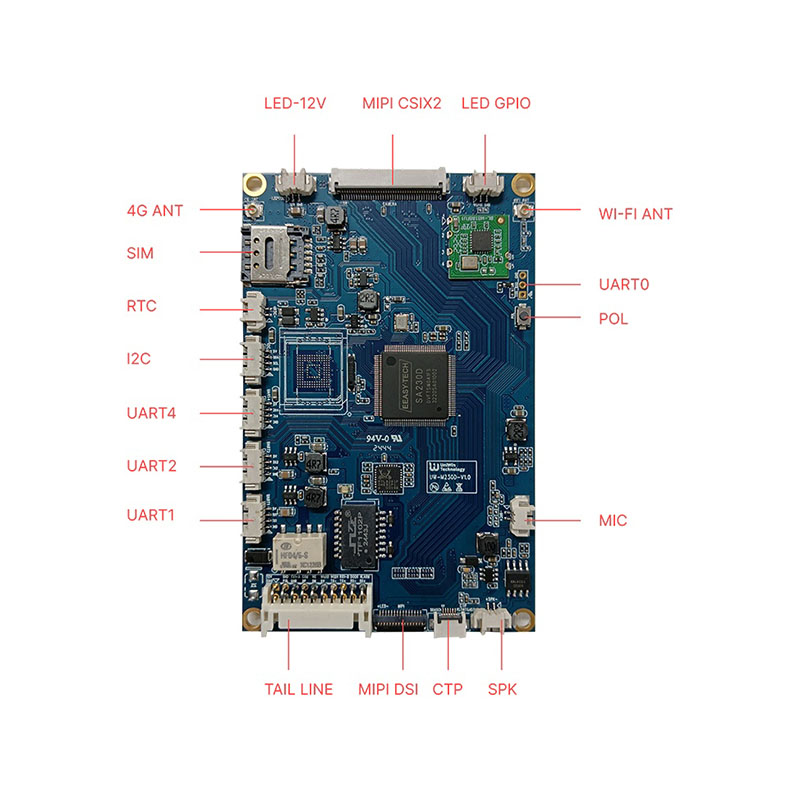

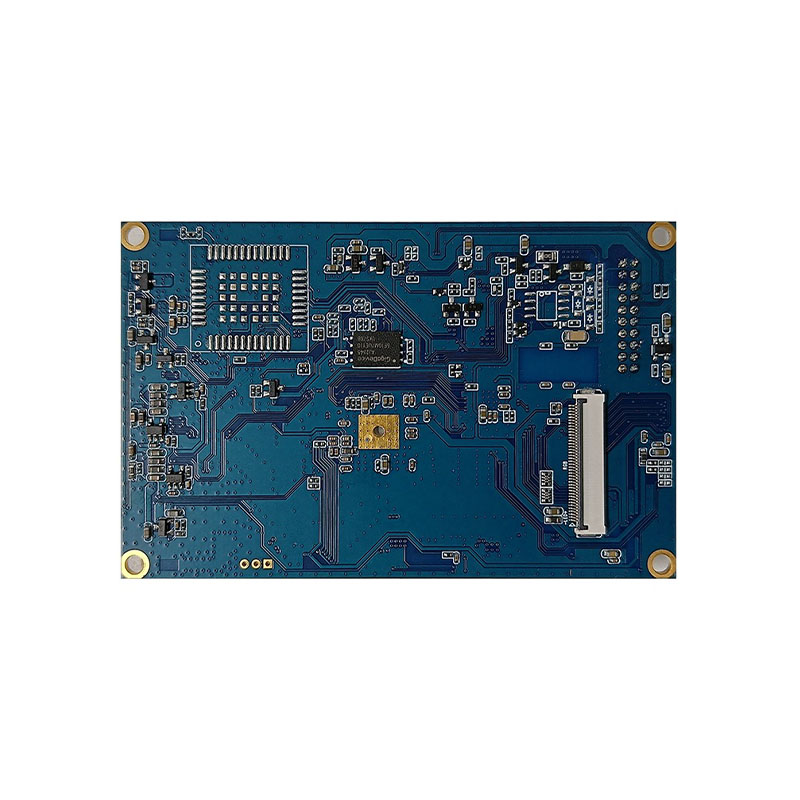

| Operating system | Linux |

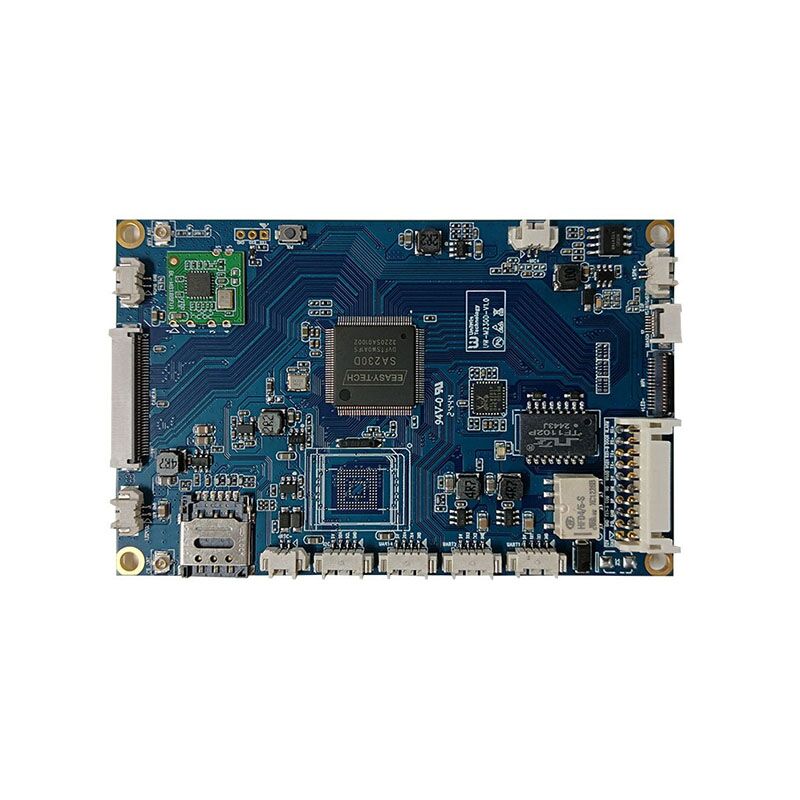

| CPU | EEASYTECH SA230D Arm Cortex-A7 |
| Memory (DDR) | Built-in DDR3L 1Gb 16-bit |
| Built-in storage (emmc) | SPINAND or EMMC 8GB/16GB/32GB optional (default label 1Gb SPI NAND) |
|
Display Interface |
RGB interface, supports maximum resolution 1920×1080@60HZ |
| MIPI interface, supports maximum resolution 1920×1200@60HZ | |
| Display voltage | Not available |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*I2C (support multi-point capacitive touch) |
|
Audio |
Built-in amplifier, supports 8Ω 2W speakers Built-in amplifier, supports 2W 8 ohm speakers |
| Support MIC, 1 microphone interface | |
| NPU | Built-in convolutional neural network accelerator NPU, 0.5T computing power |
| 3G/4G | Support CAT1 4G optional (default empty) |
| USB | 1*USB_OTG |
| Serial Port | 3 TTL (1 of which is RS485 compatible) |
| IO | 1-way Wiegand IN/OUT onboard relay, multiple IOs available |
|
Network |
100M Ethernet interface, support Ethernet |
| Equipped with WIFI module, supports Wi-Fi 802.11b/g/n protocol | |
| Face database | Support 5000 face databases |
| Power supply | DC12V/2A |
| Size | 95.4mmX60.9mmX10mm |
Highlights:
(1) Highly cost-effective, dynamic face recognition, supports up to 5,000 face databases
(2) Multiple ways to open the door (card/face/password/fingerprint/palmprint, etc.)
(3) Support relay and Wiegand input and output, multiple sets of standard docking protocols (http/websocket/mqtt)
(4) Support mini-program remote door opening
(5) Support customized development of differentiated products (hardware/system/application/management platform and mini-program)
(6) Support SIP and private protocol video intercom;
| Operating system | Linux |
| CPU | EEASYTECH SA230D Arm Cortex-A7 |
| Memory (DDR) | Built-in DDR3L 1Gb 16-bit |
| Built-in storage (emmc) | SPINAND or EMMC 8GB/16GB/32GB optional (default label 1Gb SPI NAND) |
|
Display Interface |
RGB interface, supports maximum resolution 1920×1080@60HZ |
| MIPI interface, supports maximum resolution 1920×1200@60HZ | |
| Display voltage | Not available |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*I2C (support multi-point capacitive touch) |
|
Audio |
Built-in amplifier, supports 8Ω 2W speakers Built-in amplifier, supports 2W 8 ohm speakers |
| Support MIC, 1 microphone interface | |
| NPU | Built-in convolutional neural network accelerator NPU, 0.5T computing power |
| 3G/4G | Support CAT1 4G optional (default empty) |
| USB | 1*USB_OTG |
| Serial Port | 3 TTL (1 of which is RS485 compatible) |
| IO | 1-way Wiegand IN/OUT onboard relay, multiple IOs available |
|
Network |
100M Ethernet interface, support Ethernet |
| Equipped with WIFI module, supports Wi-Fi 802.11b/g/n protocol | |
| Face database | Support 5000 face databases |
| Power supply | DC12V/2A |
| Size | 95.4mmX60.9mmX10mm |
